FMS IV

ADVANCED FIXATION MONITORING SYSTEM
and
HIGH-RESOLUTION COLOR STIMULATOR
with
MAGNIFICATION-COMPENSATING REFRACTOR

designed and manufactured by
Electro-Diagnostic Imaging, Inc.

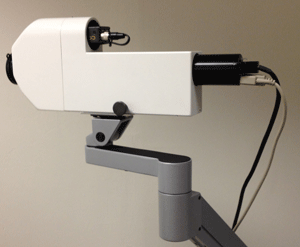

FMS IV
Available with Integrated Through-Pupil Illumination (TPI) for Improved Infrared Fundus Monitoring
The FMS IV integrated fixation monitoring, refractor, and stimulus display system provides the ultimate control of fixation, alignment, focus, and high-resolution, high-intensity stimulus delivery for multifocal visual electrophysiological testing. Designed and constructed only by Electro-Diagnostic Imaging, Inc., the FMS IV is fully integrated with, and completely controlled by your VERIS™ system software.

Performance
  • Internal high-resolution, color, LCOS stimulus display
    • 1280 x 1024 pixels at 60, 75, or 85 Hz
    • 40 microsecond response time
      • Stimulation restricted to first 2 milliseconds of each frame for ERG stimuli
    • 24-bit RGB color (8 bits per channel)
      • LED life expectancy: 1,000 hours
      • Red: 627 nm typical, half-width 20 nm at 25 deg. C.
      • Green: 530 nm typical, half-width 30 nm at 25 deg. C.
      • Blue: 470 nm typical, half-width 20 nm at 25 deg. C.
    • Greater than 300 cd/m2 maximum luminance
    • Field of stimulation: approx. 50 deg. diameter
  • Infrared Video Eye and Fundus Imaging
    • IR Eye camera provides magnified image of eye for accurate alignment and monitoring.
    • IR fundus camera provides fundus image for accurate stimulus positioning and fixation monitoring during testing.
    • Integrated software allows toggling between external eye and fundus views.
    • Both use IR LEDs: 850 nm dominant wavelength; half-width 45 nm at half intensity.
  • Through-Pupil Illumination (TPI)
    • Eliminates the need for special IR electrodes or other devices to provide infrared fundus illumination and provides improved fundus image quality.
  • Refractor provides single-knob correction of spherical refractive error with automatic compensation for magnification to project properly focused and sized stimulus to the subject's retina.
    • Maximum myopic correction > -20 D SPH

Physical

  • Approx. 18 -21" x 7" x 2.6" (46 - 54 cm x 19 cm x 6.7 cm) without mounting plate. Length depends upon focus.
  • Approx. 8 lbs. (3.63 kg)
Power Consumption
  • +12 VDC, 1.5 Amps
  • +24 VDC , 0.5 Amps
Environmental
  • Designed for use in a typical office, scientific laboratory, or hospital environment
    • Operational
      • Temperature: 20 - 32 Deg. C.
      • Humidity: 80% non-condensing
    • Shipping & Storage
      • Temperature: 0 - 40 Deg. C.
      • Humidity: 80% non-condensing
